Wet cutting

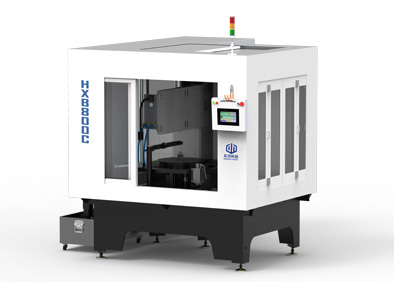

HXB800C-C Circular Sand Wire Irregular Cutting Machine

This equipment is mainly used to cut monocrystalline silicon, polysilicon, silicon carbide, ceramics, magnetic materials and other hard and brittle ma...
Product Description:

Main function:

This equipment is mainly used to cut monocrystalline silicon, polysilicon, silicon carbide, ceramics, magnetic materials and other hard and brittle materials;

The maximum workpiece size that can be cut:2800mmx2200mmx2000mm;

Machine weight:4000kg

Main feature:

Adopt international famous brand servo drive, high control precision, fast response;

Y/R two-axis configuration, Y direction repeated positioning accuracy ±0.02mm, R axis rotation repeated positioning accuracy 0.1°, to achieve high-precision cutting, save materials;

The wire frame can be adjusted up and down to match materials of different heights to achieve the best cutting effect;

Equipped with automatic oil injection lubrication system, convenient operation;

Single cutting fluid system is optional.

Main parameter list:
