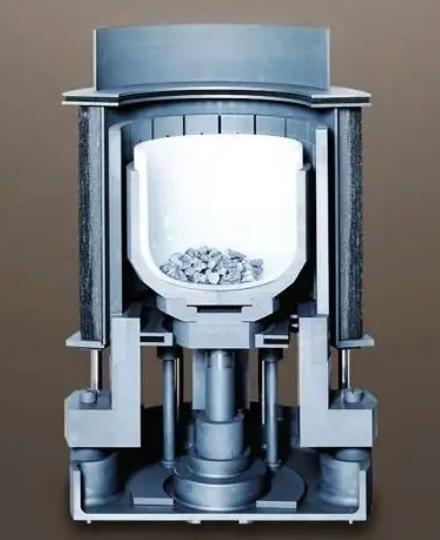

Integral graphite insulation barrel - HX1500C sand wire cutting machine

Spliced insulation barrel and heater - HX12080LNC-1600

Bottom heater - HX15530LNC-1400

Heater support feet - HX12060LNC-800

Bottom plate, cover plate, pressure ring - HX155155L-1200

Special cutting machine for integral graphite insulation barrel

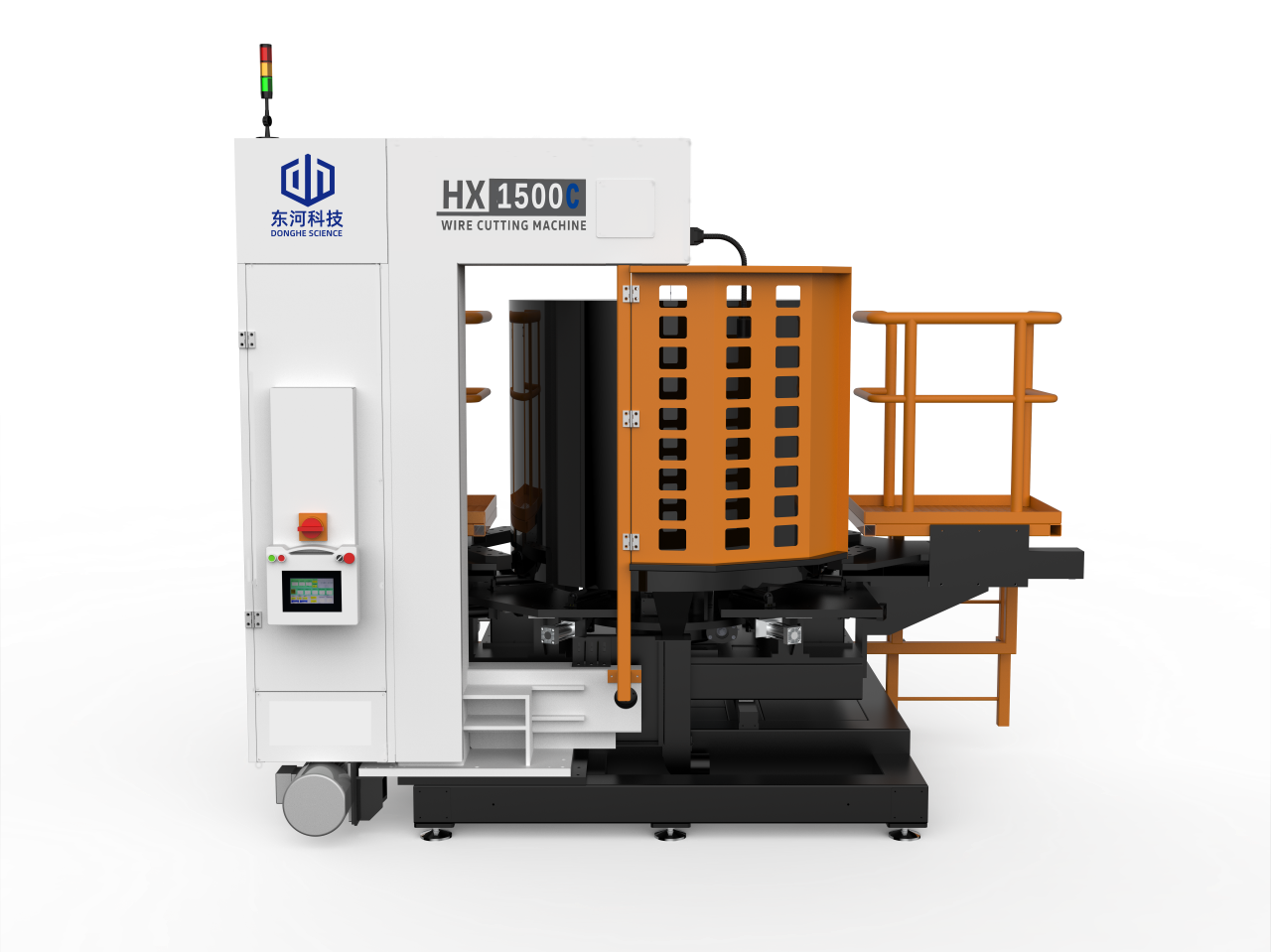

HX1500C sand wire cutting machine

Integral graphite insulation barrel special cutting machine

HX1500C sand wire cutting machine

Advantages:

Cut circles of any height and diameter within the processing range, saving a lot of customizing cost and management cost of barrel cutters.

One person operates multiple machines, saving a lot of labor costs.

Low power consumption, saving a lot of electric energy.

Small floor area, saving space.

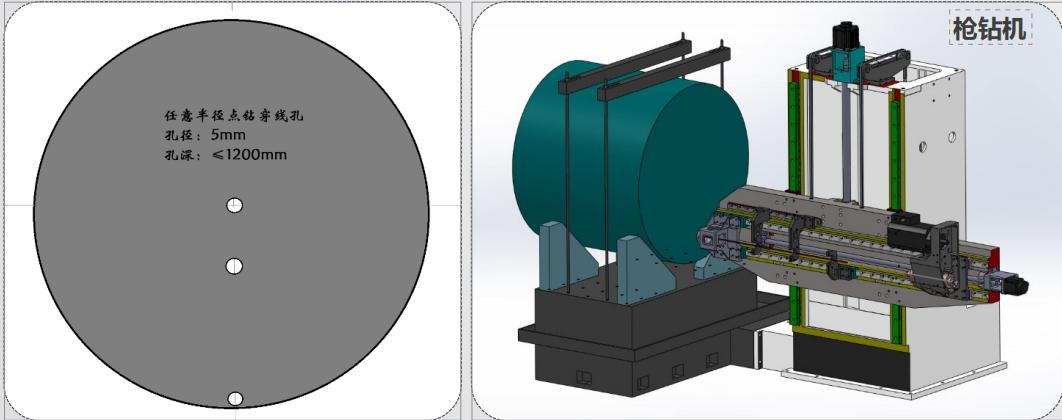

Drilling - Integral Graphite Insulation Barrel Type Graphite Insulation Barrel

Drill pre-made holes (diameter 5mm)

Make threading holes for the subsequent sand wire cutting machine to cut circles

Deep hole drilling machine: GD13080

Tool: PCD drill bit

Drill bit rotation speed: ≤4500r/min

Hole diameter range: 3~30mm

Drilling speed: ≥100mm/min

CNC system: SYNTEC 21MA, drilling depth ≤1300mm

Diamond sand wire (sectioned with sand) + butt joint pipe

Thread the wire through the pre-made threading hole

The two ends of the wire are crimped into a ring-shaped wire with the butt joint pipe

The workpiece rotates to achieve cutting: HX1500C sand wire cutting machine

After cutting is completed, cut the sand wire with diagonal pliers and pull it out

Blanking
