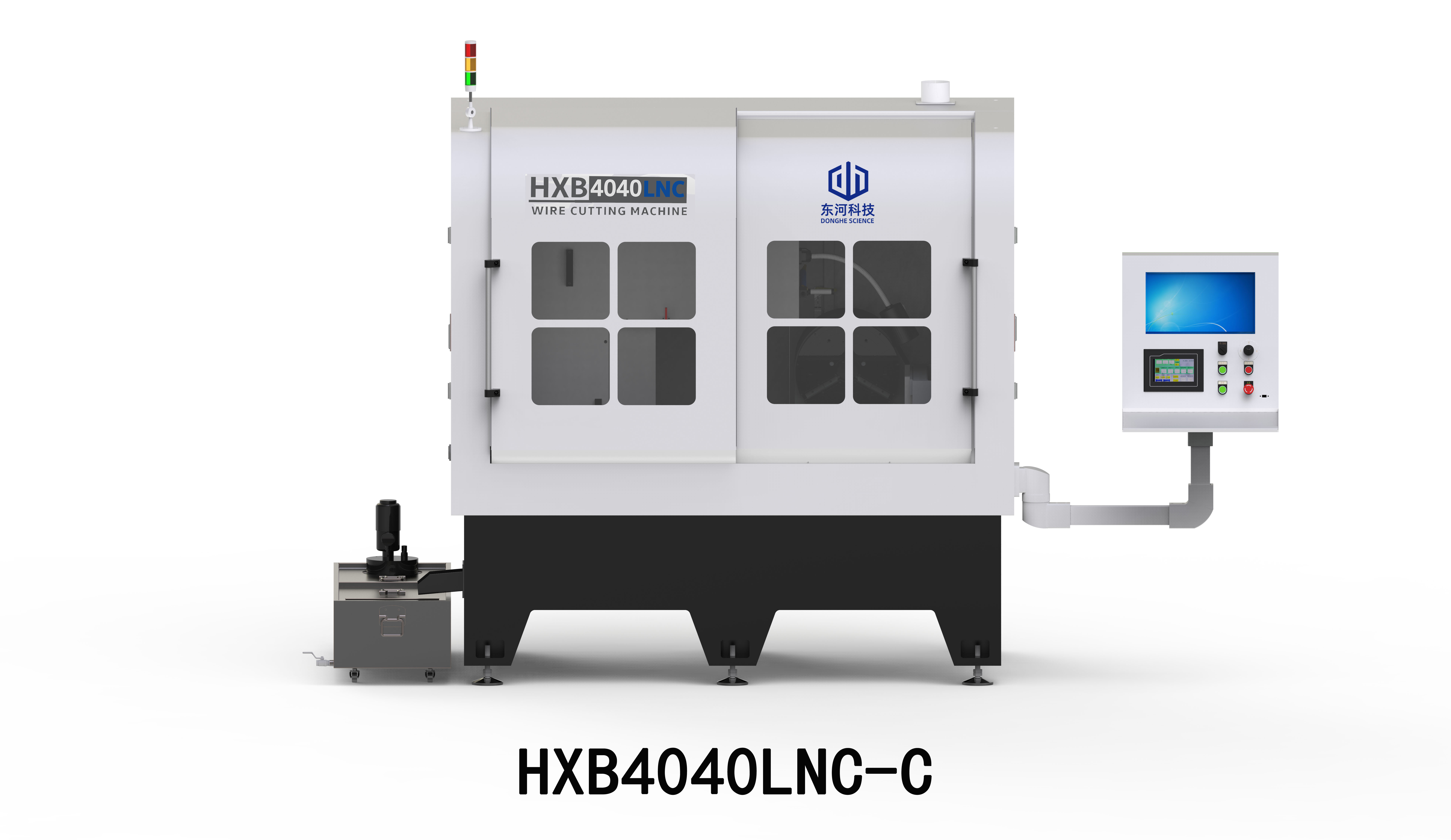

Donghe Technology | HXB4040LNC-C Circular Diamond Wire Cutting Machine

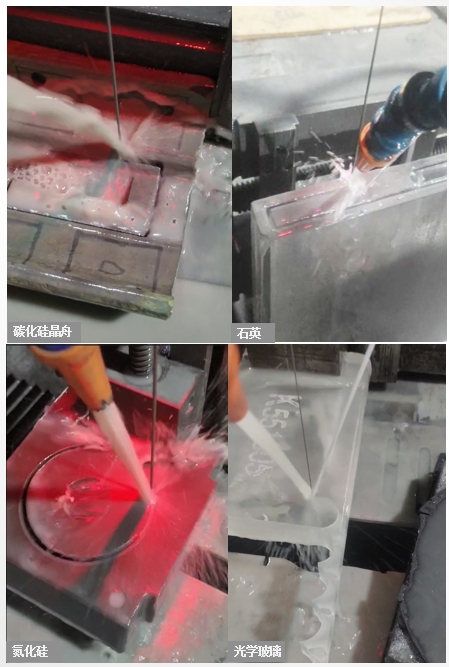

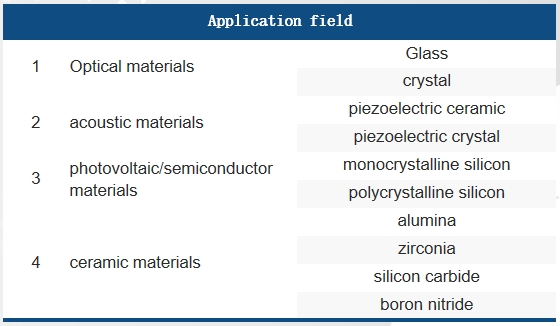

● This equipment is suitable for the special-shaped cutting of various hard and brittle materials such as crystals, glasses, ceramics, etc.;

● Loop vertical cutting machine type;

● Diamond micropowder electroplated annular sand wire realizes the cutting of materials through high-speed movement driven by the guide mechanism;

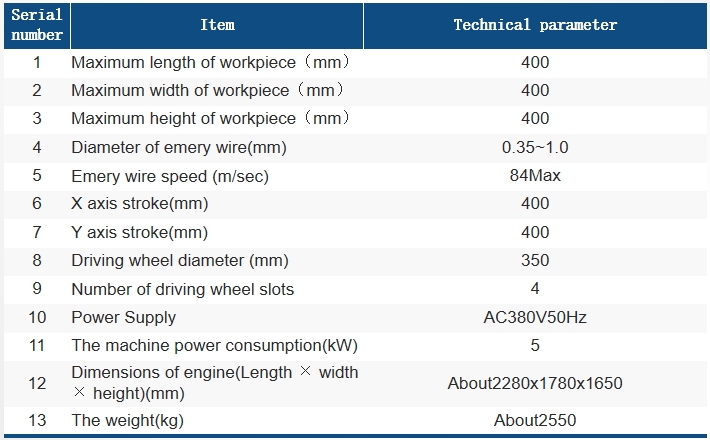

● The maximum workpiece size that can be cut: 400x400x400mm

1. Adequate protection of the moving mechanism to reduce the failure rate in long-term use;

2. The machine bed is a casting, which runs stably and has low noise;

3. Fully enclosed machine type, equipped with a top suction port to reduce the risk of water mist leakage;

4. Optional horizontal rotary chuck to achieve rotary and efficient cutting;

5. Optional centrifugal filter to improve the cleanliness of the cutting fluid;

6. Optional crystal orientation adjustment fixture;

7. Optional large wire diameter butt joint wire kit to achieve high-speed cutting of high-hardness materials.
