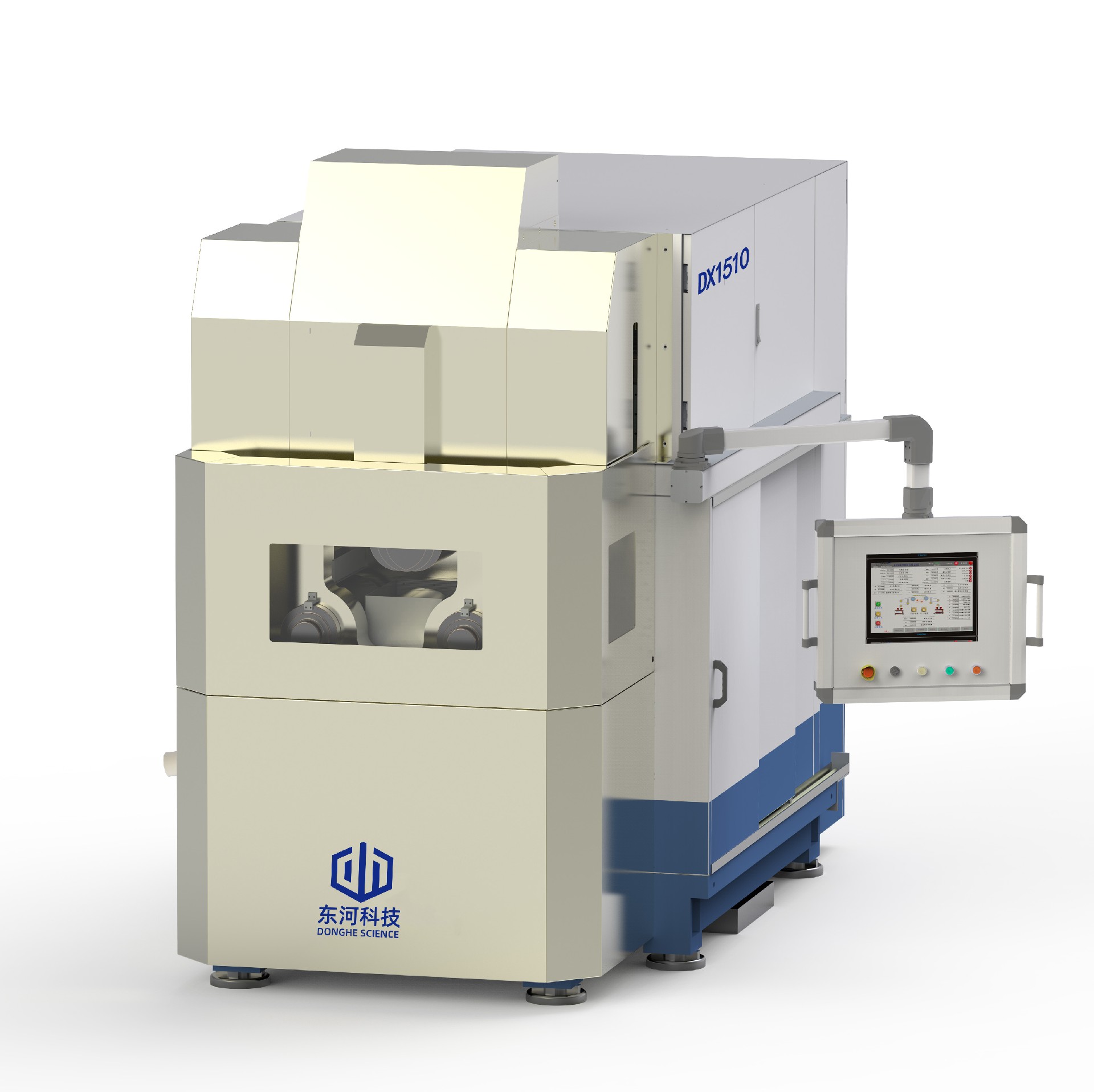

Multi-wire cutting machine, efficiently cutting materials such as quartz, glass, ceramics, and crystals.
Main function:
This equipment is mainly used to cut monocrystalline silicon, polysilicon, silicon carbide, ceramics, magnetic materials and other hard and brittle materials. Through high-precision cutting, improve work efficiency and reduce loss.

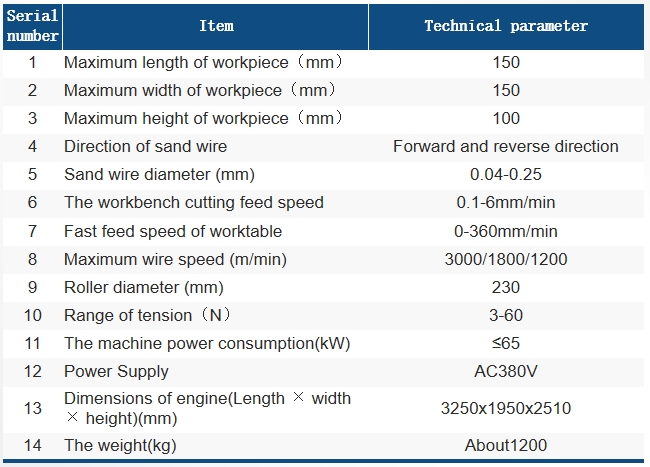

The maximum workpiece size that can be cut:150mmx150mmx100mm
Machine weight:1200kg
Main feature:
The main body of the fuselage is cast and forged, which has good stability.
International famous brand servo drive, high control precision, fast response;
Efficient cutting, cutting speed up to 1200m/min;
Humanized operation interface, intelligent and convenient;
The surface of the equipment is treated with imported paint, which does not lose paint or fade.
Feed table ±6 degrees swing design, suitable for superhard, brittle material processing.
