Dry cutting

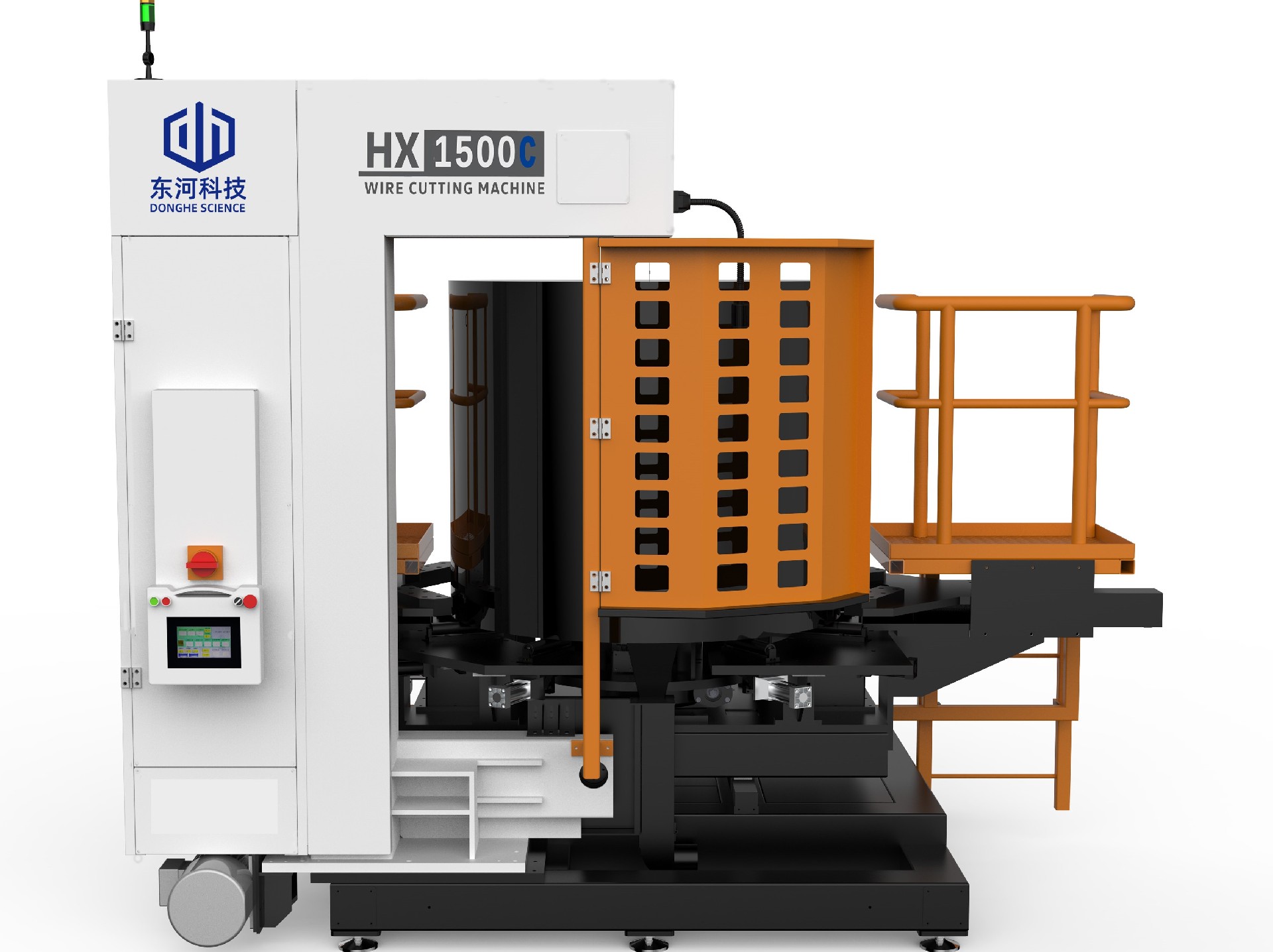

HX1500C Circular cutting machine

The equipment is suitable for graphite cutting in the field of optical hot bending mold;Special-shaped cutting can realize the cutting of 2D graphics;
Product Description:

Application:

This series is the circular rotaty cutting model, which is suitable for the materials that are dry-cut by diamond wire and ring connection wire.

Graphite, carbon fiber composites;

Ceramic blanks, etc.;

Other materials suitable for dry cutting.

Main function:

Y/R two-axis configuration, the Y-axis drags the worktable to move as a whole for tool setting. After the tool setting is completed, the Y-axis is locked, and the R-axis rotates to achieve circular cutting;

The wire rack can be adjusted up and down;

For outer circle cutting, ring diamond wire can be used, and for inner cavity cutting, ring connection wire is required for processing;

The equipment is internally equipped with a dust collection pipe, which can be connected to the negative pressure pipe of the external central dust collection system.

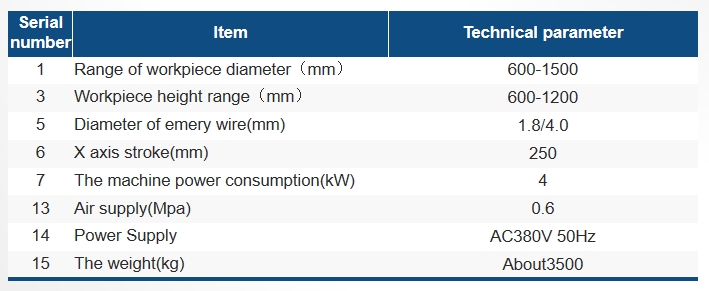

Main parameter list:

HX1500C参数表
